3-Jaw Gear Puller, The Unsung Hero of Mechanics: The Magic of the 3-Jaw Gear Puller
In the world of machinery and mechanics, there’s a tool that stands out for its simplicity and effectiveness: the 3-jaw gear puller. It’s not as flashy as a power drill or as intimidating as a welding torch, but it’s a vital hero in the toolkit of any mechanic. Let’s dive into the fascinating concept behind this ingenious device.
The Problem Solver in Disguise
Imagine you’re trying to repair an old car, and you need to remove a stubborn gear or pulley that’s been fixed in place for years. It’s rusted, stuck, and won’t budge no matter how much force you apply. This is where the 3-jaw gear puller steps in as the ultimate problem solver.
How It Works

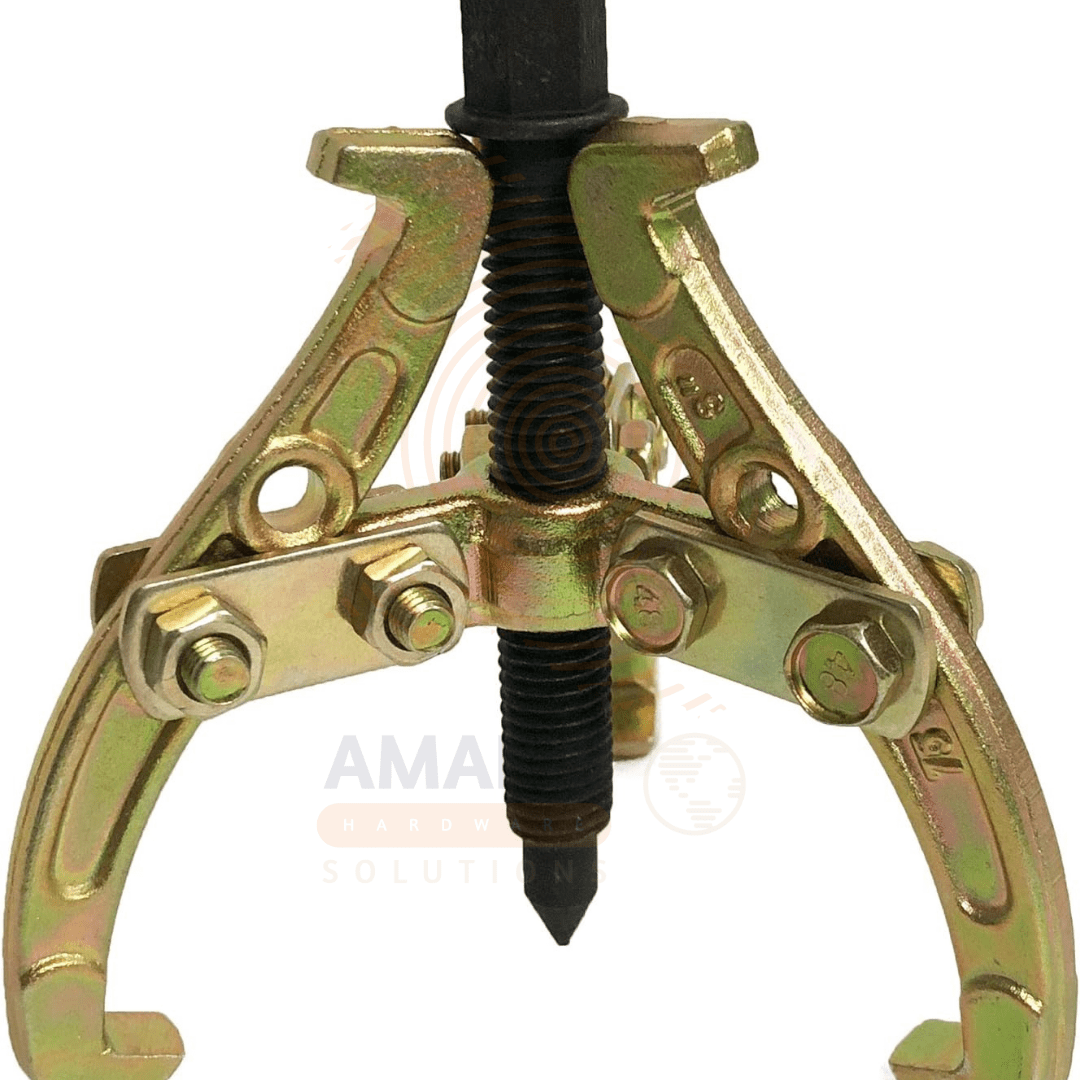

A 3-jaw gear puller consists of three main components:
- The Central Screw: This is the driving force behind the tool. By turning this screw, you apply pressure that will eventually pop the gear off its mount.
- The Arms (Jaws): The three arms are equally spaced around the central screw and grip the gear or pulley securely. These jaws can adjust to fit various sizes, making the puller versatile.
- The Crossbar: This component connects the arms and ensures that they move in unison when the central screw is turned.
When you place the jaws around the gear and tighten the central screw, the pressure is distributed evenly across the gear. This even distribution is crucial as it prevents damage to the gear and the shaft it’s mounted on. As you continue to turn the screw, the jaws pull the gear towards them, gradually and smoothly removing it from its position.
The Physics Behind the Pull
The beauty of the 3-jaw gear puller lies in its ability to convert rotational force into linear force. When you rotate the central screw, it threads through the crossbar, moving it upward. This upward movement is transferred to the jaws, which then pull the gear or pulley off its shaft. It’s a perfect example of mechanical advantage and the power of leverage.
Versatility and Applications
What makes the 3-jaw gear puller truly remarkable is its versatility. It’s used not only in automotive repair but also in various fields like agriculture, manufacturing, and even in home workshops. Whether you’re dealing with a stuck bicycle crank or a heavy-duty industrial gear, this tool can handle it all.
Why It’s Indispensable: The 3-jaw gear puller is indispensable because it saves time and effort while ensuring the safety of both the mechanic and the machinery. Without it, removing gears would often result in damaged components and potential injuries.
